Zoom V3

  • von

Creative Voice Effects

Choose from 16 voice-changing effects like Unison and Vocoder to enhance your performance. V3’s parameter knob allows you to fine-tune your sound. The special effects enable you to alter your voice for video game streaming, podcasts, and YouTube videos.

Whether you’re streaming, recording, or collaborating online, the V3 is packed with effects, harmonizing options, pitch correction and more. Your voice will sound amazing – from your home, or anywhere else.

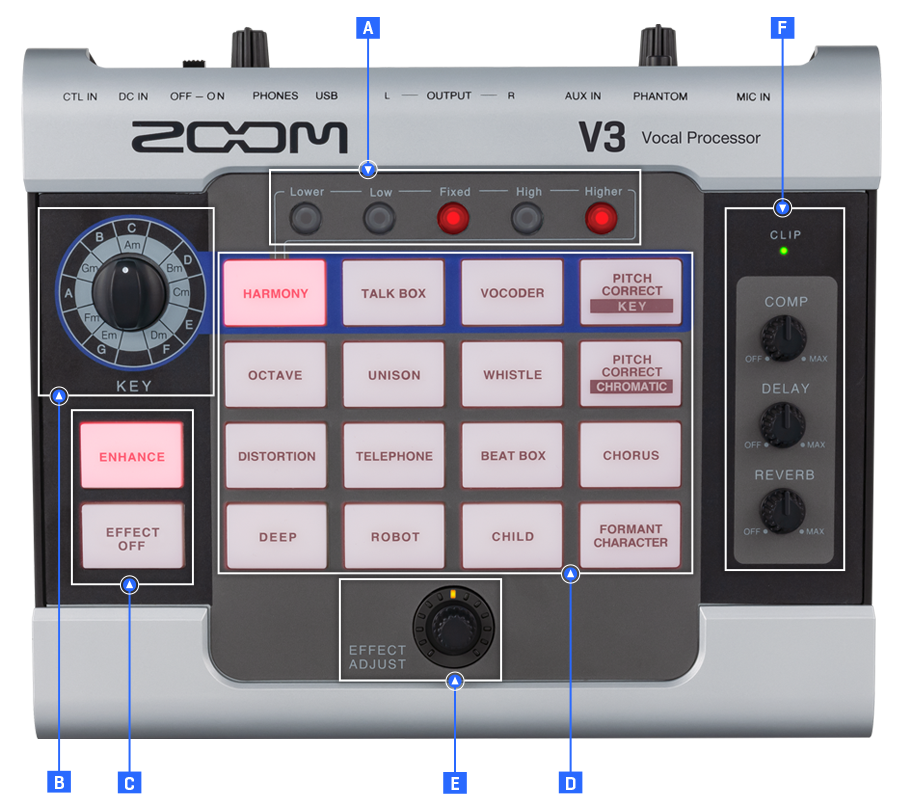

Take a Tour of the V3

 Harmony Selection: Select the intervals to be used for harmony

 Key Select Knob: Select the key used for harmony and pitch correction

 Enhance Button: Turn enhance on/off

 Effects Selection Buttons: Activate one of 16 effects

 Effect Adjustment Knob: Adjust the selected effects parameter

 Compressor/Delay/Reverb Knobs: Adjust levels for each effect

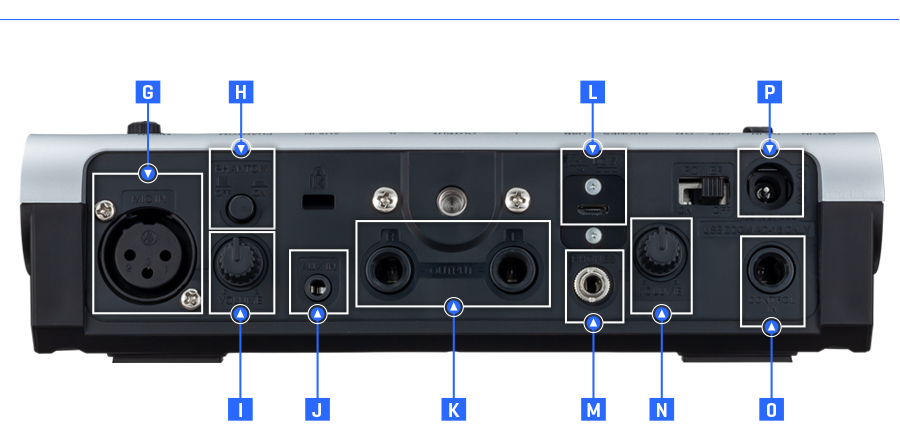

 XLR Input: XLR input for Microphone

 Phantom Power Button: Turn phantom power (+48v) on/off

 Volume Knob: Adjust the microphone input volume

 AUX IN Jack: connect devices such as portable music player

 Output Jacks: 1/4″ output connections for PA systems, recorders etc

 USB Port: USB connection for Audio interface or power from mobile batteries

 Headphone: 1/4″ connection

 Headphone Volume Knob: Adjust headphone volume level

 Control Input: Connect optional foot switch (FS-01) or expression pedal (FP-02M)

 DC9V Input: Connect ZOOM adapter AD-16

Back
Yourself
Up

Create and arrange your own backup vocals. Add up to two voices to create your 3-part harmonies in both major and minor keys.

T.NAVA | Keyboards, Vocals | The Free Nationals, Anderson Paak

Creative Voice Effects

Choose from 16 voice-changing effects like Unison and Vocoder to enhance your performance. V3’s parameter knob allows you to fine-tune your sound. The special effects enable you to alter your voice for video game streaming, podcasts, and YouTube videos.

All the Essentials

In addition to advanced effects, the V3 lets you dial-in reverb, delay and compression using dedicated control knobs.

Moment of Clarity

The V3 provides a professional quality pre-amp so you can sound your best. The Enhance function automatically optimizes the performance of any mic.

Add More Flavor

Press the Formant Character button and use the parameter knob to alter your vocal characteristics without changing the pitch.

The Zoom
SGV-6 Mic

The optional Zoom SGV-6 microphone is designed to isolate your voice by suppressing ambient noise. The mic’s vocal isolation enables the V3 to process your voice with unmatched accuracy.

USB Audio Interface

The V3 connects to your computer or mobile device via USB to become an audio interface for recording and streaming.

Hands-Free Control

Toggle effects precisely on beat with the ZOOM FS01 footswitch, or freely modulate effect parameters with the ZOOM FP02M expression pedal.

Easy Access

Use the V3 on a tabletop or attach it to a mic stand using the Zoom HRM-7 (7 inch) or HRM-11 (11 inch) Handy Recorder Mount.

Features

  • V3 offers 16 creative voice effects plus compression, reverb, delay and enhance
  • Add up to two voices to create 3-part harmonies across a full octave
  • Independent compression, reverb and delay controls
  • Built-in Enhancer for increased sound clarity
  • 48V phantom power for condenser microphones
  • USB 2.0 audio interface capable of recording up to 16/24/32-bit, 44.1 kHz
  • Line outputs for connecting to PA systems or mixing consoles
  • Headphone output with dedicated volume control
  • Auxiliary input
  • Operates for 3.5 hours on 4 AA batteries or with Zoom AD-16 AC adapter

What’s in
the Box

Here’s what is included:

  • V3 Multi-Effects Vocal Processor
  • 4 AA Batteries
  • V3 Operation Manual

MEDIA

VIDEO

DOWNLOADS

IMAGES

DOCUMENTS

V3 Operation ManualV3 Mode d’emploi (French)V3 Bedienungsanleitung (German)V3 Manuale Operativo (Italian)V3 Manual de Instrucciones (Spanish)V3 使用说明书 (Chinese)
